This system fits into 2010 to 2012 Range Rover L322 with and without Dual View Screen.

It takes about a full working day to install the system.

The system will work with any iPhone running iOS13 or later.

For AndroidAuto certain handsets do not work reliably with wireless AndroidAuto and we recommend checking compatibility with your handset on the official AndroidAuto website. Samsung S Series or Google Pixel handsets are recommended for the best experience. Your Android device must be running Android 11 or later to support wireless AndroidAuto.

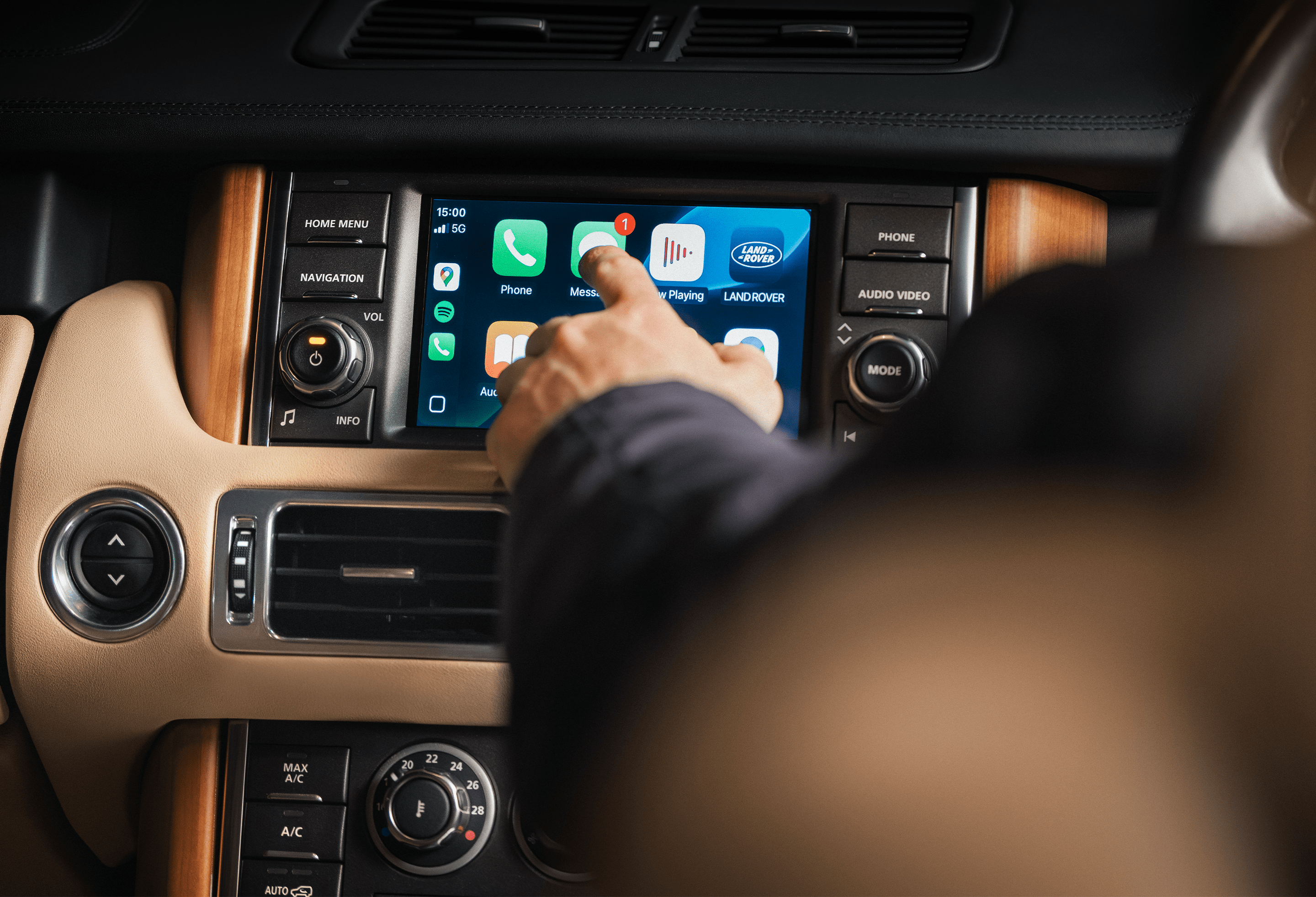

No. The system integrates with the existing Range Rover touch screen with no visible changes to the interior appearance. CarPlay and AndroidAuto are integrated into the functionality of the existing Range Rover infotainment system.

JLR Classic are only offering the system as installed at JLR Classic approved workshops.

You will just need your original phone USB cable. Non original cables may work but can cause connection problems.

The system has a USB A port in the cubby box for connection and comes with a USB C to A adaptor if your phone has a USB C cable.

Yes, you can either via the CarPlay USB port in the centre armrest cubby box or via the original Range Rover USB port also in the centre armrest cubby box.

No, once your phone has been connected once during the set up process it will work wirelessly with the system.

We are using a UK based company to provide an integrated system which retains the appearance and functionality of the original Range Rover touch screen and infotainment system.

Yes, you can. If you are using the CarPlay / AndroidAuto system your phone calls will be managed by that system. Voice activated calling can be done by saying “Hey Siri” or “Hey Google”.

The Voice control button on the steering wheel will not work with the CarPlay/AndroidAuto system.

If you have switched out of CarPlay/AndroidAuto and are using the standard Range Rover infotainment screens you phone calls will be managed by that system and the voice control button on the steering wheel will work.

1. Ensure both Wi-Fi and Bluetooth connections are turned on in the phone settings.

2. Ensure Siri is enabled.

Go to Settings, Tap Siri & Search,

Make sure “Listen For” or “Talk to” is set to : “Siri” or “Hey Siri” and also set Allow Siri When Locked.

3. Connect your iPhone ideally using a genuine Apple Lightning Cable to the single stand-alone USB Port in the arm rest cubby box. This is between the USB/iPod connection and the 12V power socket. Non genuine cables may work but cannot be guaranteed. If your cable has a USB C type connection use the supplied Type A to Type C adaptor

4. On your phone 2 pop ups will appear. “Allow CarPlay with “IDCORE” while phone is locked” and the “Use Wireless CarPLay with “IDCORE”?” Tap ALLOW to both and leave the lightning cable connected for at least 5 seconds.

5. After 5 seconds have passed, disconnect your iPhone from the Lightning Cable, then wait for up to 30 seconds, CarPlay should now load wirelessly. Please set a timer on you iPhone for 2 minutes and wait patiently, this step cannot be rushed. Older iPhones may take 2 minutes to connect and iPhone 7 and above usually takes less than a minute.

1. Ensure your phone fully supports wireless AndroidAuto. Certain handsets do not work reliably with wireless AA and we recommend checking compatibility with your handset on the official AndroidAuto website. Samsung S Series or Google Pixel handsets are recommended for the best experience. Your Android device must be running Android 11 or later to support wireless AndroidAuto.

2. Enable Wi-Fi and Bluetooth on your Android Handset.

3. Enter the IDCORE interface menu – long press the Red “end call” button on the steering wheel.

4. On the IDCORE set up screen scroll down to “SmartPhone”. Press the screen and slide your finger up. In the SMART PHONE menu ensure ‘Android device’ is set to ‘AndroidAuto

5. On your Android handset, enter Settings-Bluetooth and search for ‘IDCORE

6. Tap on IDCORE, pairing popup will appear, select ‘Pair’

7. IDCORE will now appear as an active bluetooth connection.

8. Connection may take up to 2 minutes, whilst ‘Attaching AndroidAuto’ will appear on the screen whilst connection finishes.

9. AndroidAuto appears on screen and is ready to use. In some circumstances, you may need to tap allow to any notifications on the phone screen.

• Remove the phone from the vehicle, close the doors and lock and arm the vehicle with the keyfob and wait approximately 1 minute. This will allow the system to shut down and switch off any phone connections that have been made. Unlock and enter the vehicle and turn the ignition on.
• Alternatively select the SETUP menu on the screen (long press the Red “end call” button on the steering wheel. ) and then scroll down and select SMART PHONE and tap REBOOT. Once the system is rebooted the phone should reconnect
• If this does not work enter your phone Bluetooth menu, find “IDCORE” and try connecting. Wait for 2 minutes.

• The Carplay system uses the Aux input into the Range Rover audio system. This needs to be selected as the Audio source in the Range Rover system.
• Press and hold the Red hang up button on the steering wheel to switch back into the Range Rover system.
• Select Portable Audio and then Aux.
• Press and hold the Red hang up button on the steering wheel to switch back into the CarPlay / AndroidAuto System and the sound will be restored.

The Carplay system uses the Aux input into the Range Rover audio system. This needs to be selected as the Audio source in the Range Rover system. Pressing the “Mode” button changed the Range Rover Audio system source away from Aux to another source, i.e. Radio, or Camera or CD on a cycle, and this source will be heard over the audio system.

If this happens continue pressing the “Mode” button until it cycles round to Aux and the CarPlay system or press and hold the Red hang up button on the steering wheel to switch back into the Range Rover system.

Select Portable Audio and then Aux. Then press and hold the Red hang up button on the steering wheel to switch back into the CarPlay / AndroidAuto System.

The Carplay system uses the Aux input into the Range Rover audio system, as such the Aux input port in the vehicle is disabled. The rubber bung has been fitted to prevent inadvertent use.

You have the front camera input to the CarPlay system accidentally selected.

If you are in a Range Rover screen press and hold the Red end call button on the steering wheel and then,

If you are using CarPlay press the “Range Rover” icon in the menu screen.

If you are using AndroidAuto select Exit.

Press the Setup icon on the screen.

Scroll down – press the screen and slide your finger up and select the Front View Option. Ensure this is switched off.

Press the home button and then press either the highlighted CarPlay icon or the AndroidAuto icon.

This can happen if the vehicle battery is depleted as the system is unable to establish full video connection to the screen.

Start the engine and let it run for a few minutes then switch off, lock and arm the car and wait for 1 minute, then unlock and restart the car. Normal screen operation will be resumed.

The CarPlay / AndroidAuto system does not use the voice control button on the steering wheel. Instead, voice control of the system is initiated by saying “Hey Siri” or “Hey Google” and then stating your request.

The voice control steering button will still continue to function if you switch back into the Range Rover system.

The voice quality can be influenced by many factors. In addition to differences in the quality of mobile devices, the coverage of the mobile network and a poor connection of the remote station may also play a role. Furthermore, the volume of the BT module may be set too low. Change it via the Settings menu/Volume/Bluetooth.

If multiple previously connected devices are in the vehicle the CarPlay/AndroidAuto system generally connects to the last phone used in the vehicle, but this will depend on which phone connects first.

Regarding multiple phones – we usually recommend connecting a second or temporary phone via wire - please see the two routes below for dealing with this.

Choose the primary phone and connect the primary phone with bluetooth/WiFi connection only. The secondary phone(s) should use a cable only. When you plug in the secondary phone for the first time, there will be a pop up window on your phone to ask for permission to use wireless CarPlay. Please select NO to use Wired CarPlay only to prevent the secondary phone using bluetooth/WiFi to connect in the future.

Multiple phone solution 2

All phones use bluetooth/WiFi to connect. When multiple phones will be in the car, please ensure only 1 phone has Bluetooth and WiFi enabled. All other phones need to be set to Flight Mode temporarily until Apple CarPlay is connected.
